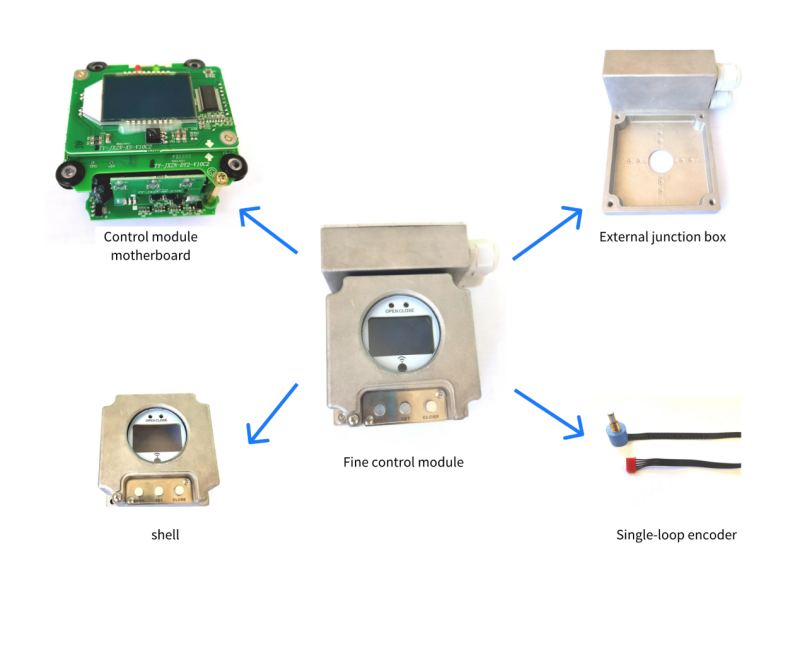

New fine and small control module
The fine and small intelligent modules are widely used in petroleum, chemical industry, electric power, metallurgy, pharmacy, paper making, energy, water treatment, shipping, textile, food processing, building automation and other fields. At the same time, it has many advantages, such as small volume, light weight, beautiful appearance, unique and compact structure, easy installation, small operating torque, convenient operation, digital display valve position, no maintenance, safe and convenient use, etc.
Waterproof performance: non through magnetic induction is adopted for the key part, double sealing rubber ring is adopted for the lens part, and sealing rubber ring and waterproof joint are adopted for the shell and external junction box to reduce the possibility of water ingress from the outside.
Access mode: the non intrusive access mode without opening the cover is adopted to reduce the possibility of water ingress into the box caused by incorrect operation of on-site workers.
Integrated intelligent switch: integrate the adjustment of intelligent switch to reduce the pressure of purchasing and stocking. (Password is required for switching modes)
Encryption mode: to prevent misoperation of field workers, which may lead to error of module parameters and damage of valve body.
Precision: high precision, up to 1% precision, with basic error no more than 1%
Module self-protection: automatic phase discrimination and commutation function, power input phase loss detection, motor overheating, instantaneous turnover, power failure, overload fault alarm, current input and output overvoltage and overcurrent protection, anti-interference protection of all models
Customizable: special voltage, extended field bus (Modbus Rtu, Profi bus communication protocol, special protocol), input and output signals, shape structure, special module, English module
Product features and advantages
Working environment: 1. Working temperature - 20 °~70 ° storage temperature 2. Working voltage: AC220V, AC380, D24V, DC48V, ± 15% fluctuation, special voltage can be customized
Technical parameters: 1. Switch type, regulating type, general type (optional) free switching 2. Input signal 4~20mA DC input channel impedance 2503. Output signal: 4-20mA load resistance:<750 Ω 4. Sensitivity 0.2-20 (adjustable) Basic error: ± 1% Basic error ± 1%
Function features: 1. CPU has power off self memory function, which automatically saves valve settings and operating parameters in case of power failure. 2. Segment code screen in Chinese and English displays valve position in case of power failure. 3. Three operation modes of field remote remote control. 4. Input and output current can be calibrated and calibrated through menu. 5. Remote control distance is within 5M. Special customizable. 6. Special password function
Module protection: 1. Automatic phase detection and commutation function; 2. Power input and output phase loss detection; 3. Motor overheating instantaneous reversal, power failure, overload fault alarm; 4. Encoder fault alarm; 5. Current input and output transient over-voltage and over-current protection; 6. Anti interference protection for all signals; 7. Signal loss positions can be set: fully open, fully closed, and protected
Wiring instructions: 1. The control harness is equipped with the module as standard, and the wire number of each wire is marked. The plug adopts anti dazzle measures, which is simple and convenient. 2. The plug-in terminal block can be customized
Special customization: 1. Special voltage can be customized. 2. Expandable field bus: MODBUS RTU, PROFIBUS, HART, M-BUS, CAN BUS, special protocol can be customized for development. 3. Input and output signals can be customized for 0-5V0-10V, etc. 4. Shape structure and special module can be designed according to customer requirements. 5. Export full-text module. 6. Mobile APP remote control LOAR master station control
