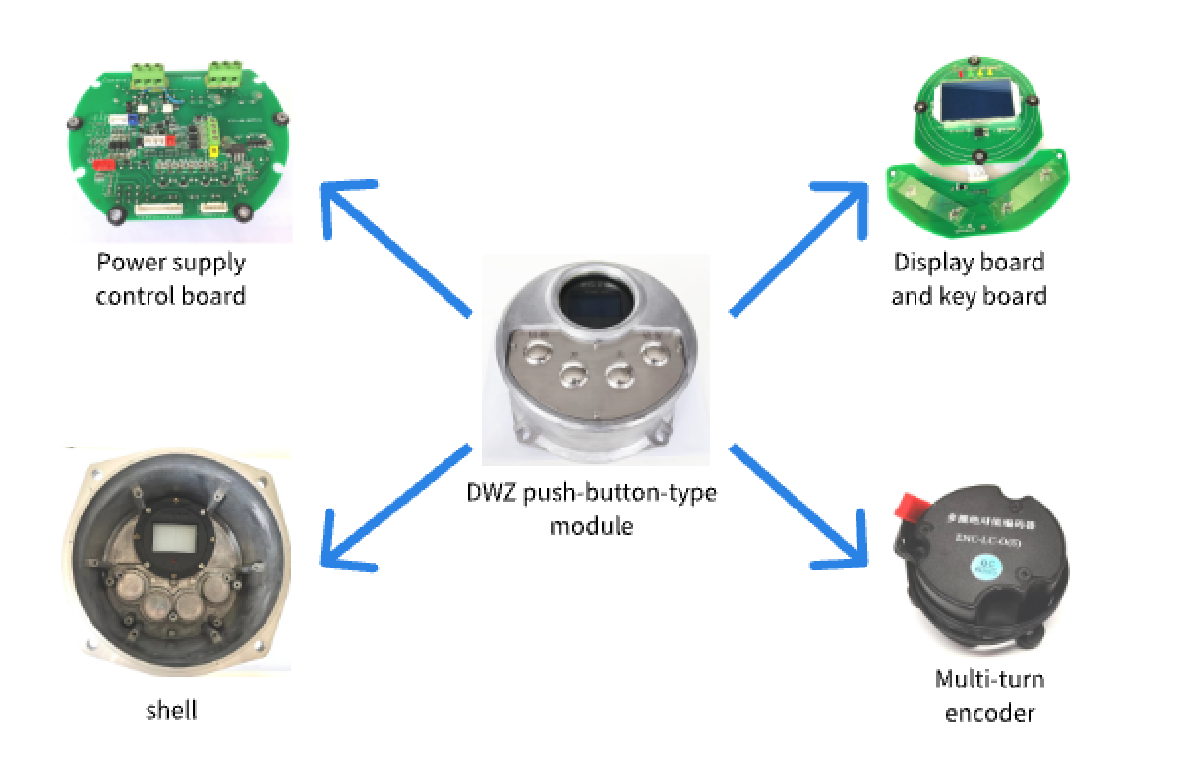

DZW type iron case intelligent control module
DWZ rotary modular multi turn electric actuator is a very important field driving device in the industrial process control system. Its energy is convenient to use, simple to install and debug, and is increasingly widely used in electric power, metallurgy, petroleum, chemical and other industrial sectors. The electric actuator consists of electric actuator and regulating valve. The control accuracy mainly depends on the control performance of the electric actuator. It can convert the control signal of the system into angular displacement and linear displacement of the output shaft, the position of the control valve and other interceptors or other regulating mechanisms, so that the controlled medium can work according to the system requirements
Waterproof performance: the key part adopts non through magnetic induction, and the lens part adopts sealing rubber ring, reducing the possibility of water entering from the outside.
Access mode: Non intrusive access mode without opening the cover is adopted to reduce the possibility of water entering the box due to incorrect operation by on-site workers
Intelligent switch integration: intelligent switch adjustment integration reduces the pressure of purchasing and stocking. (Password is required for switching modes)
Encryption mode: to prevent misoperation of field workers, which may lead to error of module parameters and damage of valve body.
Precision: high precision, up to 1% precision, and the basic error is not more than 1%.
Module self-protection: automatic phase discrimination and commutation function, power input phase loss detection, motor overheating, instantaneous turnover, power failure, overload fault alarm, current input and output over-voltage and over-current protection, and anti-interference protection of all models.
Customizable: special voltage, extended field bus (Modbus Rtu, Profi bus communication protocol, special protocol), input and output signals, shape structure, special module, English module.
1. Operating temperature - 20 °~70 ° Storage temperature 2. Operating voltage: AC220V, AC380, D24V, DC48V, ± 15% fluctuation, special voltage can be customized
2. Switch type, regulating type, general type (optional) free switching 2. Input signal 4~20mA DC input channel impedance 2503. Output signal: 4-20mA Load resistance:<750 Ω 4. Sensitivity 0.2-20 (adjustable) Basic error: ± 1% Basic error ± 1%
3. CPU has power off self memory function to automatically save valve settings and operating parameters in case of power failure. 2. Segment code screen Chinese and English interface to display valve position in case of power failure. 3. Three operation modes of field remote remote control. 4. Input and output current can be calibrated and calibrated through menu. 5. Remote control distance is within 5M. Special customizable. 6. Password special function
4. Automatic phase discrimination and commutation function 2. Power input and output phase loss detection 3. Motor overheating instantaneous reversal, power failure, overload fault alarm 4. Encoder fault alarm 5. Current input and output transient over-voltage over-current protection 6. All signal anti-interference protection 7. Signal loss positions can be set: fully open, fully closed, and protected
5. The control harness is equipped with the module as standard, and the wire number of each wire is marked. The plug adopts anti dazzle measures, which is simple and convenient. 2. The plug-in terminal block can be customized
6. Special voltage can be customized 2. Expandable field bus: MODBUS RTU, PROFIBUS, HART, M-BUS, CAN BUS, special protocol can be customized for development 3. Input and output signals can be customized for 0-5V0-10V, etc. 4. Shape structure and special module can be designed according to customer requirements 5. Export full-text module 6. Mobile APP remote control LOAR master station control
