1、 Control topology
2、 Advantages of smart water control scheme
【1】 Remote mobile phone APP monitors and controls pipeline valves, which solves the difficulty of remote wiring and on-site control
【2】 There are two power supply modes: grid power supply and wind solar complementary energy storage power supply. The wind solar complementary energy storage power supply mode can adapt to complex installation locations and harsh environments
【3】 The whole solution has two control forms: one is cascaded control via wired bus, which can be directly connected to the existing DCS platform system. All bus interfaces of the DCS platform system can be customized for development; The other way is to control through the wireless cloud, that is, you can connect to the mobile APP or our cloud platform management system. It is also possible to connect third-party cloud platform systems according to project needs, and customize third-party dedicated link cloud system protocols
【4】 All index parameters such as river water level, flow rate, water pressure, water quality and pipeline flow can be directly connected to the electrical installation module system through on-site collection sensors, and the closed-loop equilibrium control of the pipe network can be achieved through PID fuzzy algorithm
【5】 Video monitoring and remote voice control can be upgraded to integrate river safety management, pipe network control, water quality detection and other functions with AI technology.

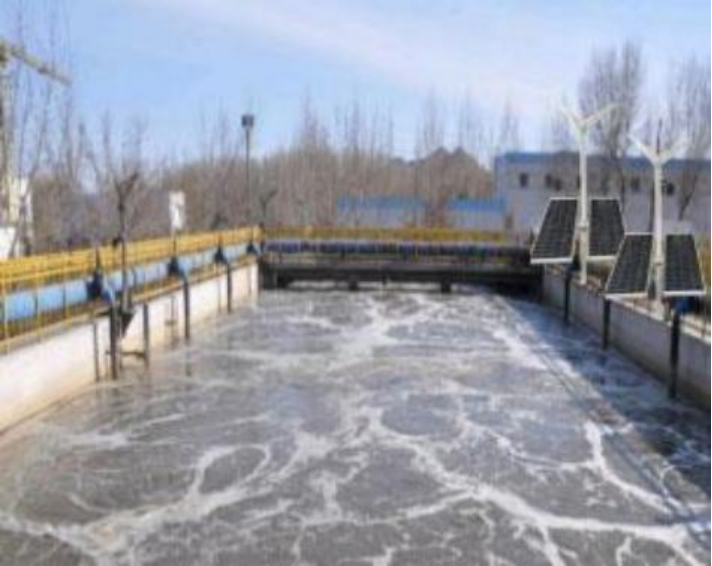

3、 Success stories
